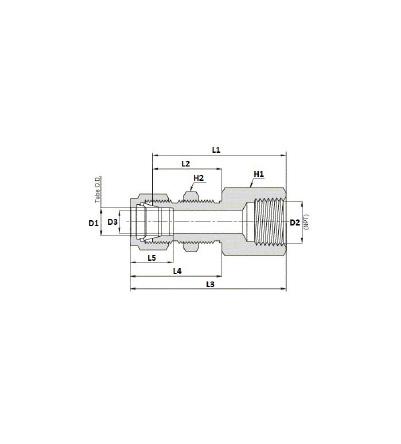

BULKHEAD FEMALE CONNECTOR
Catalogue|
METRIC TO NPT |
||||||||||||
|
Product ID |
D1 |
D2 (NPT) |
D3 |
H1 |
H2 |
L1 |
L2 |
L3 |
L4 |
L5 |
Panel Hole Drill Size |
Panel Hole Drill Size |
|
mm |
inch |
mm |
inch |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
BFC_6 x NPT-1/4 |
6 |
1/4 |
4.8 |
19 |
16 |
44.4 |
26.2 |
51.8 |
33.6 |
15.3 |
11.5 |
10.2 |
|
BFC_12 x NPT-1/2 |
12 |
1/2 |
9.5 |
27 |
24 |
56.4 |
31.8 |
66.5 |
41.9 |
22.8 |
19.5 |
12.7 |
|
IMPERIAL TO NPT |
||||||||||||
|
Product ID |
D1 |
D2 (NPT) |
D3 |
H1 |
H2 |
L1 |
L2 |
L3 |
L4 |
L5 |
Panel Hole Drill Sizeı |
Panel Hole Drill Size |
|
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
|
|
BFC_1/8 x NPT-1/8 |
1/8 |
1/8 |
.09 |
9/16 |
1/2 |
1.50 |
.97 |
1.76 |
1.23 |
.50 |
21/64 |
.50 |
|
BFC_1/4 x NPT-1/8 |
1/4 |
1/8 |
.19 |
5/8 |
5/8 |
1.56 |
1.03 |
1.85 |
1.32 |
.60 |
29/64 |
.40 |
|
BFC_1/4 x NPT-1/4 |
1/4 |
1/4 |
.19 |
3/4 |
5/8 |
1.75 |
1.03 |
2.04 |
1.32 |
.60 |
29/64 |
.40 |
|
BFC_3/8 x NPT-1/4 |
3/8 |
1/4 |
.28 |
3/4 |
3/4 |
1.88 |
1.16 |
2.17 |
1.45 |
.66 |
37/64 |
.44 |
|
BFC_1/2 x NPT-3/8 |
1/2 |
3/8 |
.41 |
15/16 |
15/16 |
2.03 |
1.25 |
2.43 |
1.65 |
.90 |
49/64 |
.50 |
|
BFC_1/2 x NPT-1/2 |
1/2 |
1/2 |
.41 |
1 1/16 |
15/16 |
2.22 |
1.25 |
2.62 |
1.65 |
.90 |
49/64 |
.50 |
