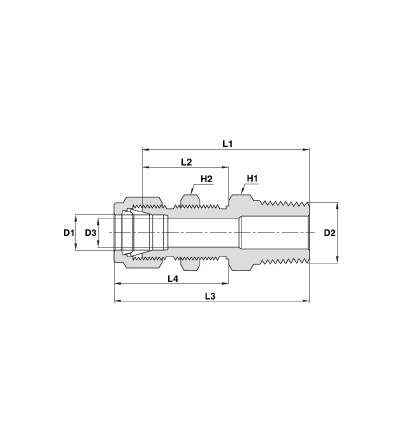

BULKHEAD MALE CONNECTOR
Catalogue|
METRIC TO NPT |
|||||||||||
|
Product ID |
D1 |
D2 (NPT) |
D3 |
H1 |
H2 |
L1 |
L2 |
L3 |
L4 |
Panel Hole Drill Size |
Max. Panel Width |
|
mm |
inch |
mm |
inch |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
BMC_6 x NPT-1/8 |
6 |
1/8 |
4.8 |
16 |
16 |
42.2 |
26.2 |
49.6 |
33.6 |
11.5 |
10.2 |
|
BMC_6 x NPT-1/4 |
6 |
1/4 |
4.8 |
16 |
16 |
46.2 |
26.2 |
53.6 |
33.6 |
11.5 |
10.2 |
|
BMC_12 x NPT-1/2 |
12 |
1/2 |
9.5 |
24 |
24 |
58.7 |
31.8 |
68.8 |
41.9 |
19.5 |
12.7 |
|
IMPERIAL TO NPT |
|||||||||||
|
Product ID |
D1 |
D2 (NPT) |
D3 |
H1 |
H2 |
L1 |
L2 |
L3 |
L4 |
Panel Hole Drill Size |
Max. Panel Width |
|
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
|
|
BMC_1/8 x NPT-1/8 |
1/8 |
1/8 |
.09 |
1/2 |
1/2 |
1.57 |
.97 |
1.83 |
1.23 |
21/64 |
.50 |
|
BMC_1/4 x NPT-1/8 |
1/4 |
1/8 |
.19 |
5/8 |
5/8 |
1.66 |
1.03 |
1.95 |
1.32 |
29/64 |
.40 |
|
BMC_1/4 x NPT-1/4 |
1/4 |
1/4 |
.19 |
5/8 |
5/8 |
1.84 |
1.03 |
2.13 |
1.32 |
29/64 |
.40 |
|
BMC_3/8 x NPT-1/4 |
3/8 |
1/4 |
.28 |
3/4 |
3/4 |
1.97 |
1.16 |
2.26 |
1.45 |
37/64 |
.44 |
|
BMC_3/8 x NPT-3/8 |
3/8 |
3/8 |
.28 |
3/4 |
3/4 |
1.97 |
1.16 |
2.26 |
1.45 |
37/64 |
.44 |
|
BMC_3/8 x NPT-1/2 |
3/8 |
1/2 |
.28 |
7/8 |
3/4 |
2.22 |
1.16 |
2.51 |
1.45 |
37/64 |
.44 |
|
BMC_1/2 x NPT-3/8 |
1/2 |
3/8 |
.40 |
15/16 |
15/16 |
2.09 |
1.25 |
2.49 |
1.65 |
49/64 |
.50 |
|
BMC_1/2 x NPT-1/2 |
1/2 |
1/2 |
.40 |
15/16 |
15/16 |
2.31 |
1.25 |
2.71 |
1.65 |
49/64 |
.50 |
|
BMC_3/4 x NPT-3/4 |
3/4 |
3/4 |
.62 |
1 3/16 |
1 3/16 |
2.60 |
1.47 |
3.00 |
1.87 |
1 1/64 |
.66 |
|
BMC_1 x NPT-1 |
1 |
1 |
.88 |
1 5/8 |
1 5/8 |
3.19 |
1.78 |
3.67 |
2.26 |
1 21/64 |
.75 |
