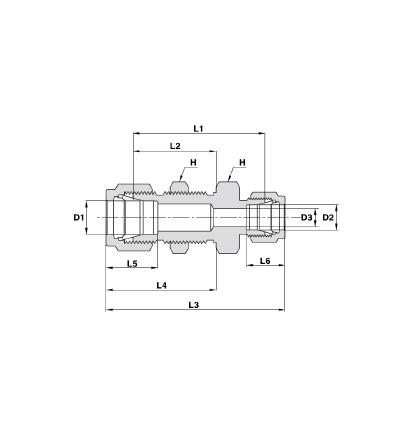

BULKHEAD REDUCING UNION
Catalogue|
METRIC TO IMPERIAL |
||||||||||||
|
Product ID |
D1 |
D2 |
D3 |
H |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
Panel Hole Drill Size |
Max. Panel Width |
|
mm |
inch |
mm |
inch |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
BRU_6 x 1/8 |
6 |
1/8 |
2.4 |
16 |
41.1 |
26.2 |
55.1 |
33.6 |
15.3 |
12.7 |
11.5 |
10.2 |
|
BRU_6 x 1/4 |
6 |
1/4 |
4.8 |
16 |
42.9 |
26.2 |
57.7 |
33.6 |
15.3 |
15.2 |
11.5 |
10.2 |
|
BRU_12 x 1/2 |
12 |
1/2 |
9.5 |
24 |
50.8 |
31.8 |
71.1 |
41.9 |
22.8 |
22.9 |
19.5 |
12.7 |
|
BRU_18 x 3/4 |
18 |
3/4 |
15.1 |
30 |
58.7 |
37.3 |
79.0 |
47.4 |
24.4 |
24.4 |
26.0 |
16.8 |
|
IMPERIAL TO IMPERIAL |
||||||||||||
|
Product ID |
D1 |
D2 |
D3 |
H |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
Panel Hole Drill Size |
Max. Panel Width |
|
inch |
inch |
mm |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
inch |
|
|
BRU_1/8 x 1/16 |
1/8 |
1/16 |
.05 |
1/2 |
1.44 |
.97 |
1.85 |
1.23 |
.50 |
.34 |
21/64 |
.50 |
|
BRU_3/16 x 1/4 |
3/16 |
1/4 |
.12 |
9/16 |
1.62 |
1.00 |
2.17 |
1.26 |
.54 |
.60 |
25/64 |
.50 |
|
BRU_1/4 x 1/8 |
1/4 |
1/8 |
.09 |
5/8 |
1.62 |
1.03 |
2.17 |
1.32 |
.60 |
.50 |
29/64 |
.40 |
|
BRU_1/4 x 3/8 |
1/4 |
3/8 |
.19 |
5/8 |
1.74 |
1.03 |
2.61 |
1.32 |
.60 |
.66 |
29/64 |
.40 |
|
BRU_3/8 x 1/4 |
3/8 |
1/4 |
.19 |
3/4 |
1.81 |
1.16 |
2.39 |
1.45 |
.66 |
.60 |
37/64 |
.44 |
|
BRU_1/2 x 1/4 |
1/2 |
1/4 |
.19 |
15/16 |
1.94 |
1.25 |
2.63 |
1.65 |
.90 |
.60 |
49/64 |
.50 |
|
BRU_1/2 x 5/8 |
1/2 |
5/8 |
.41 |
15/16 |
2.03 |
1.25 |
2.83 |
1.65 |
.90 |
.96 |
49/64 |
.50 |
|
BRU_5/8 x 3/8 |
5/8 |
3/8 |
.28 |
1 1/16 |
2.06 |
1.28 |
2.75 |
1.68 |
.96 |
.66 |
57/64 |
.50 |
