METRIC TO METRIC

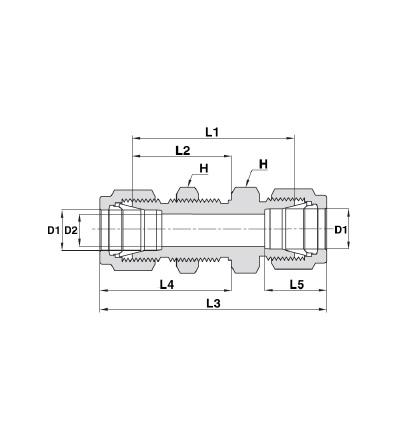

Product ID

D1

D2

H

L1

L2

L3

L4

L5

Panel Hole Drill Size

Panel Hole Drill Size

mm

mm

mm

inch

mm

mm

mm

mm

mm

mm

BU_3

3

2.4

14

38.1

24.6

51.3

31.2

12.9

8.30

12.7

BU_4

4

2.4

14

40.4

25.4

53.6

32.0

13.7

9.90

12.7

BU_6

6

4.8

16

42.9

26.2

57.7

33.6

15.3

11.50

10.2

BU_8

8

6.4

18

46.0

28.6

61.0

36.1

16.2

13.10

11.2

BU_10

10

7.9

22

48.5

29.4

63.7

37.0

17.2

16.25

11.2

BU_12

12

9.5

24

50.8

31.8

71.0

41.9

22.8

19.50

12.7

BU_14

14

11.0

27

52.3

32.5

72.5

42.6

24.4

22.80

12.7

BU_15

15

11.9

27

52.3

32.5

72.5

42.6

24.4

22.80

12.7

BU_16

16

12.7

27

52.3

32.5

72.5

42.6

24.4

22.80

12.7

BU_18

18

15.1

30

58.7

37.3

78.9

47.4

24.4

26.00

16.8

BU_20

20

15.9

35

64.3

42.9

84.5

53.0

26.0

29.00

19.0

BU_25

25

21.8

41

71.4

45.2

96.0

57.5

31.3

33.70

19.0

BU_30

30

BU_32

32

BU_38

38

33.7

60

89.8

51.9

145.0

79.5

49.4

50.50

19.0

IMPERIAL TO IMPERIAL

Product ID

D1

D2

H

L1

L2

L3

L4

L5

Panel Hole Drill Size

Panel Hole Drill Size

inch

inch

inch

inch

inch

inch

inch

inch

inch

inch

BU_1/16

1/16

.05

5/16

.94

.53

1.24

.68

.34

13/64

.12

BU_1/8

1/8

.09

1/2

1.50

.97

2.02

1.23

.50

21/64

.50

BU_3/16

3/16

.12

9/16

1.59

1.00

2.11

1.26

.54

25/64

.50

BU_1/4

1/4

.19

5/8

1.69

1.03

2.27

1.32

.60

29/64

.40

BU_5/16

5/16

.25

11/16

1.81

1.12

2.39

1.41

.64

33/64

.44

BU_3/8

3/8

.28

3/4

1.87

1.16

2.45

1.45

.66

37/64

.44

BU_1/2

1/2

.41

15/16

2.00

1.25

2.80

1.65

.90

49/64

.50

BU_5/8

5/8

.50

1 1/16

2.06

1.28

2.86

1.68

.96

57/64

.50

BU_3/4

3/4

.62

1 3/16

2.31

1.47

3.11

1.87

.96

1 1/64

.66

BU_1

1

.88

1 5/8

2.81

1.78

3.77

2.26

1.23

1 21/64

.75

BU_1 1/4

1 1/4

1.09

1 7/8

3.11

1.88

4.85

2.75

1.62

1 41/64

.75

BU_1 1/2

1 1/2

1.34

2 1/4

3.34

1.94

5.48

3.01

1.97

1 61/64

.75

BU_2

2

1.81

2 3/4

4.16

2.22

7.10

3.69

2.66

2 41/64

.75
