Compression Fittings

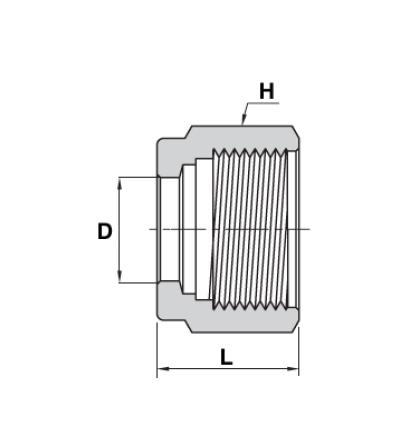

NUT
Catalogue|
METRIC |
|||
|
Product ID |
D |
H |
L |
|
mm |
mm |
mm |
|
|
NUT_2 mm |
2 |
12 |
11.9 |
|
NUT_3 |
3 |
12 |
11.9 |
|
NUT_4 |
4 |
12 |
11.9 |
|
NUT_6 |
6 |
14 |
12.7 |
|
NUT_8 |
8 |
16 |
13.5 |
|
NUT_10 |
10 |
19 |
15.1 |
|
NUT_12 |
12 |
22 |
17.4 |
|
NUT_14 |
14 |
25 |
17.4 |
|
NUT_15 |
15 |
25 |
17.4 |
|
NUT_16 |
16 |
25 |
17.4 |
|
NUT_18 |
18 |
30 |
17.4 |
|
NUT_20 |
20 |
32 |
17.4 |
|
NUT_22 |
22 |
32 |
17.4 |
|
NUT_25 |
25 |
38 |
20.6 |
|
NUT_28 |
28 |
46 |
30.6 |
|
NUT_B28 |
B28 |
45 |
20.6 |
|
NUT_30 |
30 |
50 |
32.7 |
|
NUT_32 |
32 |
50 |
34.4 |
|
NUT_38 |
38 |
60 |
40.6 |
|
NUT_50 |
50 |
3 inch |
54.0 |
|
IMPERIAL |
|||
|
Product ID |
D |
H |
L |
|
inch |
inch |
inch |
|
|
NUT_1/16 |
1/16 |
5/16 |
.31 |
|
NUT_1/8 |
1/8 |
7/16 |
.47 |
|
NUT_3/16 |
3/16 |
1/2 |
.47 |
|
NUT_1/4 |
1/4 |
9/16 |
.50 |
|
NUT_5/16 |
5/16 |
5/8 |
.53 |
|
NUT_3/8 |
3/8 |
11/16 |
.56 |
|
NUT_1/2 |
1/2 |
7/8 |
.69 |
|
NUT_5/8 |
5/8 |
1 |
.69 |
|
NUT_3/4 |
3/4 |
1 1/8 |
.69 |
|
NUT_7/8 |
7/8 |
1 1/4 |
.69 |
|
NUT_1 |
1 |
1 1/2 |
.81 |
|
NUT_1 1/4 |
1 1/4 |
1 7/8 |
1.25 |
|
NUT_1 1/2 |
1 1/2 |
2 1/4 |
1.50 |
|
NUT_2” |
2 |
3 |
2.06 |
