Compression Fittings

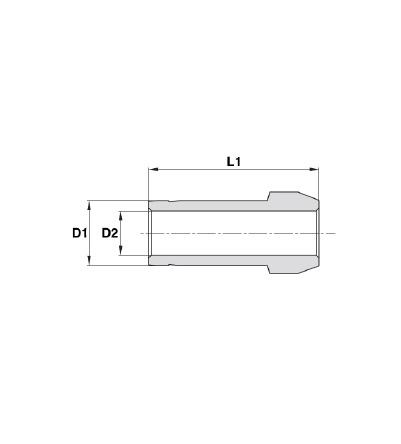

PORT CONNECTOR
Catalogue|
METRIC |
|||
|
Product ID |
D1 |
D2 |
L |
|
mm |
mm |
mm |
|
|
PC_3 |
3 |
2.1 |
22.2 |
|
PC_6 |
6 |
4.0 |
25.0 |
|
PC_8 |
8 |
5.6 |
25.9 |
|
PC_10 |
10 |
7.1 |
27.1 |
|
PC_12 |
12 |
8.8 |
36.2 |
|
PC_15 |
15 |
|
|
|
PC_16 |
16 |
12.7 |
37.4 |
|
PC_18 |
18 |
13.9 |
37.4 |
|
PC_20 |
20 |
|
|
|
PC_25 |
25 |
|
|
|
PC_B28 |
B28 |
|
|
|
PC_28 |
28 |
|
|
|
PC_30 |
30 |
|
|
|
PC_32 |
32 |
|
|
|
PC_38 |
38 |
31.6 |
81.9 |
|
PC_50 |
50 |
42.8 |
114.0 |
|
IMPERIAL |
|||
|
Product ID |
D1 |
D2 |
L |
|
inch |
inch |
inch |
|
|
PC_1/16 |
1/16 |
.03 |
.54 |
|
PC_1/8 |
1/8 |
.08 |
.88 |
|
PC_1/4 |
1/4 |
.17 |
.98 |
|
PC_5/16 |
5/16 |
.24 |
1.02 |
|
PC_3/8 |
3/8 |
.27 |
1.03 |
|
PC_1/2 |
1/2 |
.37 |
1.41 |
|
PC_5/8 |
5/8 |
|
|
|
PC_3/4 |
3/4 |
.59 |
1.47 |
|
PC_1 |
1 |
.80 |
1.90 |
|
PC_1 1/4 |
1 1/4 |
1.02 |
2.72 |
|
PC_1 1/2 |
1 1/2 |
1.25 |
3.31 |
|
PC_2 |
2 |
1.72 |
4.56 |
